Item

Parameter

Note

Basic Parameters

Pixel Pitch(mm)

3mm

Pixel Structure

1R1G1B

Pixel Density

111111/m2

Module Resolution

64（W）*64（H）

Module Dimensions

192mm*192mm

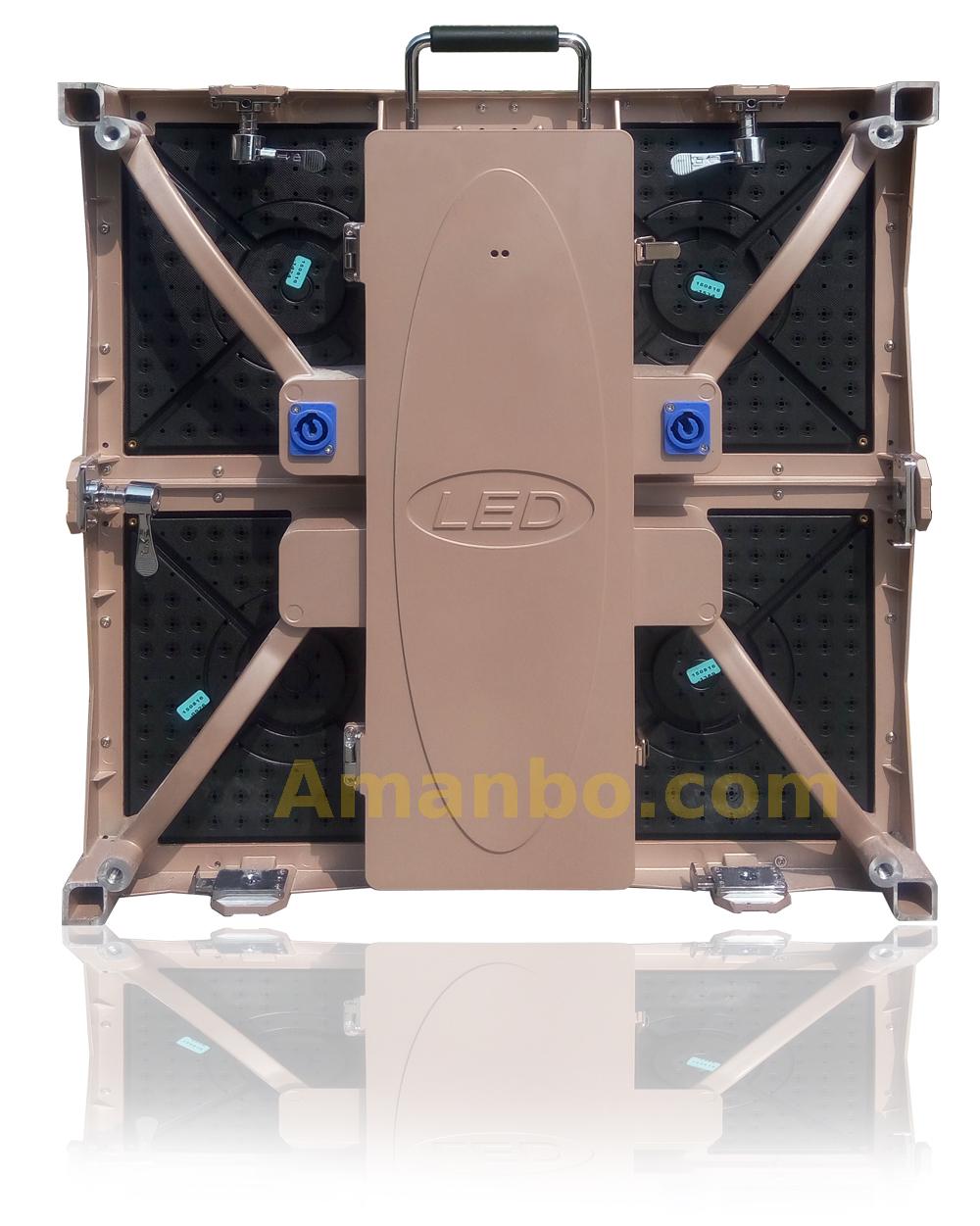

Cabinet Dimensions

576mm*576mm

Optical Parameters

Brightness per Pixel and Chroma Calibration

Matched

White Balance

≥1000cd/㎡

Color Temperature

3200K—9300K adjustable

Horizontal Viewing Angle

≥120°

Vertical Viewing Angle

≥120°

Best Viewing Distance

≥3M

Brightness Uniformity

≥97%

Contrast Ratio

≥3000:1

Processing Property

Signal processing bit

16bit*3

Grayscale Level

65536

Control Distance

Network cable：100m， fibre-optical：10km

Drive Mode

High gray constant Current Mode IC

Frame Rate

≥60HZ

Refresh Rate

≥960HZ

Control Mode

synchronization

Brightness adjust range

0-100 Stepless adjustment

Operation Parameters

Continuous working time

≥72 hours

Lifetime(typical)

50，000 hours

Protection Grade

IP20

Operating Temperature

-20 ℃ - 50 ℃

Operating Humidity

10 %- 80% RH no condensation

Storage Temperature

-20 ℃ - 60 ℃

Electrical Parameters

Working voltage

DC 5V

Power Supply

AC：220×（1±10%）V、50×（1±5%）Hz

Peak Power Consumption

650W/㎡

Average Power Consumption

300W/㎡
