QTY |
FOB PRICE |
CIF PRICE
QUANTITY
-
+
PCS
TOTAL COST
$1660Order Number : 102,Yes,12,Red Five Rings,SJD-100,10,21,3,123,01,Rotary drilling rig,Surface drilling rig,Core drilling rig,Surface sampling machine,On Demand,No |
Material : Default |
Pcs/Carton : N/A | Packing Size/Carton : N/A | Packing Vol/Carton : N/A |
N.W./Carton : N/A | G.W./Carton : N/A | QTY in 40HQ : N/A |
QTY in 40GP : N/A | QTY in 20GP : N/A |

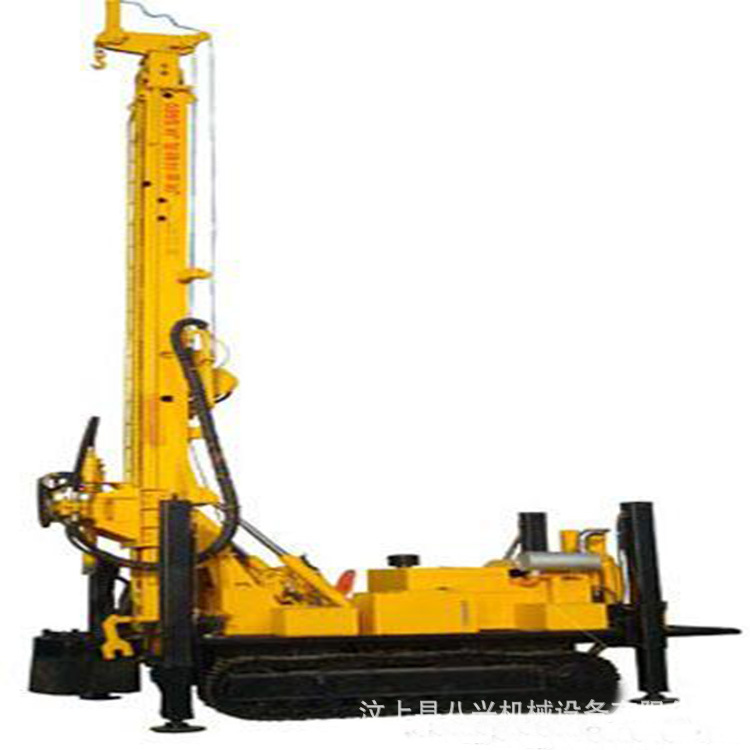

产品详情
1、发动机使用广西玉柴85Kw涡轮增压发动机;
2、行走装置:行走马达配减速箱,耐用寿命长;
3、液压油泵;并联式变速箱设计()油泵单体分开,动力提供充足分配合理,液压系统独特设计,维修简单费用小;
4、动力头装置;变速箱一体铸造,双马达提供动力,扭矩大,耐用,维修费用小;
5、钻机底盘;挖机底盘,耐用,承重量大,链板宽,对硬质路面伤害小;
6、提升力;设计复合大臂,大臂体积小,行程长,双油缸提升,提升吨位大;
7、每台钻机提升大臂都安装限位器,保护油缸安全,保障工作安全;
8、每条液压油管都包有保护外套,使油管使用寿命更长。
技术参数:
1、整机重量:8.8T;
2、外形尺寸:4350×1850×2750mm;
3、钻孔直径:180-325mm;
4、钻孔深度:300m;
5、一次性推进长度:6000mm;
6、行走速度:2Km/h;
7、单机爬坡能力:30Max.;
8、小离地间隙:230mm;
9、工作气压:1.7-3.3Mpa;
10、耗气量:23m3/min;
11、主机功率:85Kw;
12、回转速度:55-115rpm;
13、回转扭矩:7200-8500N.m
加工定制 | 是 | 品牌 | 其他 | 型号 | FY-300 |
钻孔直径 | 140-325(mm) | 钻孔深度 | 300(m) | 钻孔角度范围 | 90(°) |
电动机功率 | 84(kw) | 重量 | 9000(kg) | 破碎方式 | 冲击回转式钻机 |
施工场地 | 地表钻机 | 用途 | 水文地质水井钻机 | 钻探深度 | 中深孔钻机 |
规格 | FY-300,FY-150 | 是否跨境货源 | 否 |
|
|
