LED Screen Unit P2.5

Add to My Favorites Download QR Code

Share product to :

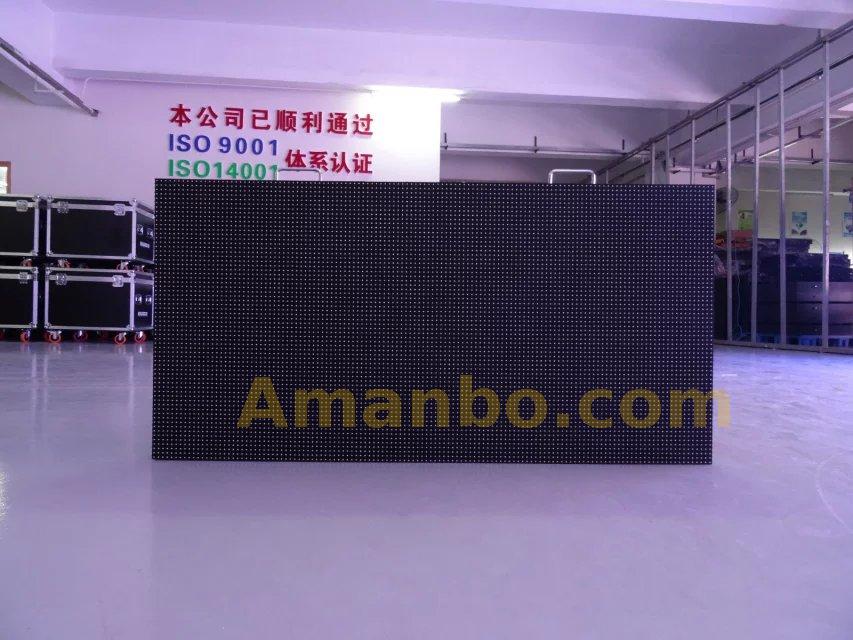

LED Screen Unit P2.5

Wattage :

100

QTY

FOB PRICE
CIF PRICE

Please contact the supplier to get the latest CIF price
QUANTITY

-

+

PCS
TOTAL COST
$1660

Specification

Model : LED Screen Unit

Input Power : 200

Input Voltage : 120-220V

LM : 100000

Lamp Body Material : Aluminum

Size : 560cm*560cm

LED Quantity : 10000000

Lasting Time : 100000

Protection Level : 65

Weight : 2

Payment Terms : L/C, T/T, MoneyGram, Other

Delivery Port : Tianjin

delivery Time : 7days

Product Advantages : Well and High Quality Control, Prompt Delivery, New Product, Customer‘s Design and Logo are Welcome, Competitive Prices, Fit for Gifts and Premiums, Earth-friendly Products, In a Variety of Design, Small Order Acceptable, ODM Accepted, OEM Accepted, Other

Material : Default

Packing Information

Pcs/Carton : N/A	Packing Size/Carton : N/A	Packing Vol/Carton : N/A
N.W./Carton : N/A	G.W./Carton : N/A	QTY in 40HQ : N/A
QTY in 40GP : N/A	QTY in 20GP : N/A

Product Introduction

Item		Parameter	Note
Basic Parameters	Pixel Pitch(mm)	2.5mm
	Pixel Structure	1R1G1B
	Pixel Density	160000/m2
	Module Resolution	80（W）*80（H）
	Module Dimensions	200mm*200mm
	Cabinet Dimensions	400mm*400mm
Optical Parameters	Brightness per Pixel and Chroma Calibration	Matched
	White Balance	≥800cd/㎡
	Color Temperature	3200K—9300K adjustable
	Horizontal Viewing Angle	≥140°
	Vertical Viewing Angle	≥120°
	Best Viewing Distance	≥3米
	Brightness Uniformity	≥97%
	Contrast Ratio	≥3000:1
Processing Property	Signal processing bit	16bit*3
	Grayscale Level	65536
	Control Distance	Network cable：100m， fibre-optical：10km
	Drive Mode	High gray constant Current Mode IC
	Frame Rate	≥60HZ
	Refresh Rate	≥960HZ
	Control Mode	synchronization
	Brightness adjust range	0-100 Stepless adjustment
Operation Parameters	Continuous working time	≥72 hours
	Lifetime(typical)	50，000 hours
	Protection Grade	IP20
	Operating Temperature	-20 ℃ - 50 ℃
	Operating Humidity	10 %- 80% RH no condensation
	Storage Temperature	-20 ℃ - 60 ℃
Electrical Parameters	Working voltage	DC 4.2-5V
	Power Supply	AC：220×（1±10%）V、50×（1±5%）Hz
	Peak Power Consumption	650 W/㎡
	Average Power Consumption	200 W/㎡
