Specification

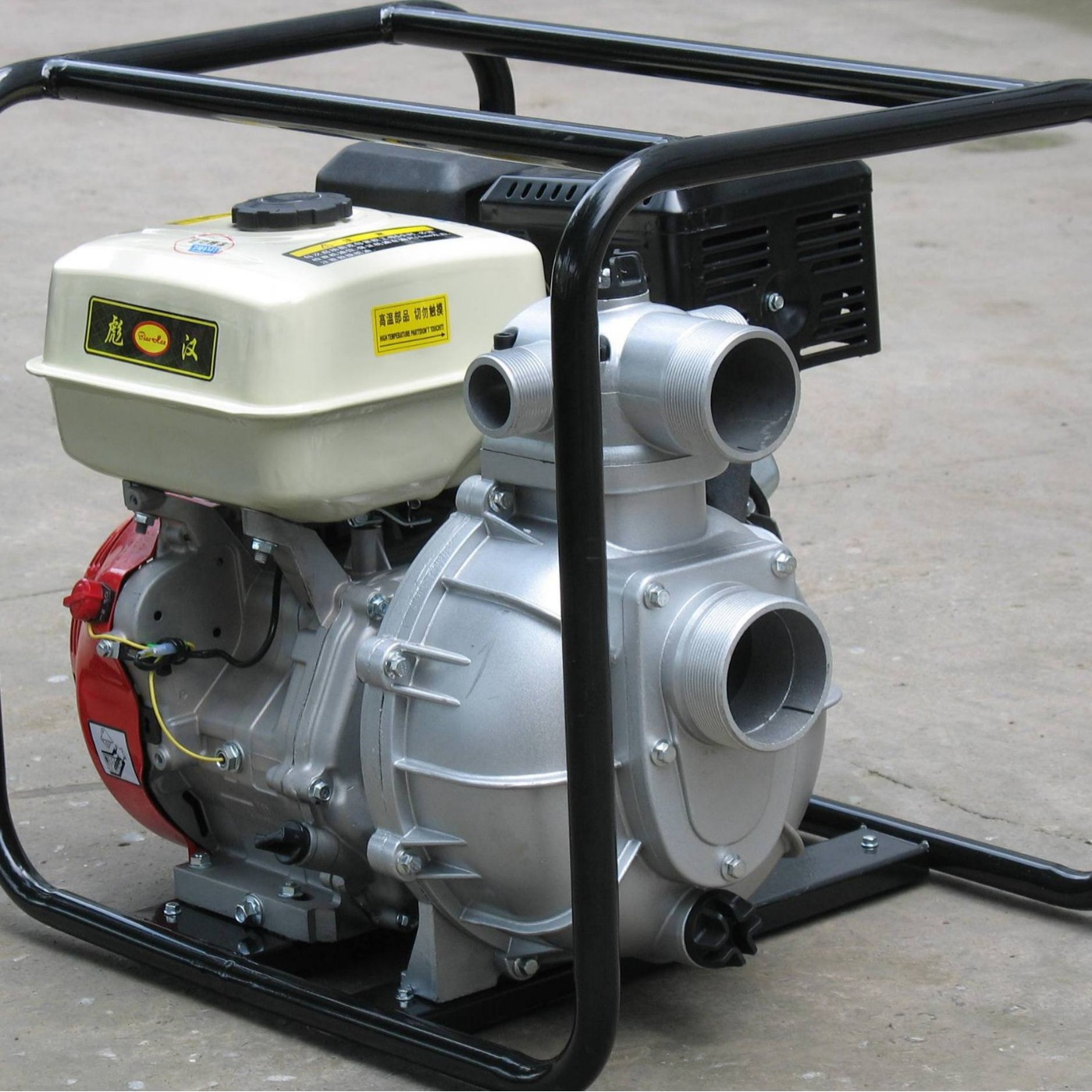

| Brand : Puhan,210,4,170F gasoline engine water pump,Irrigation and Drainage |
| Material : Default |
| Pcs/Carton : N/A | Packing Size/Carton : N/A | Packing Vol/Carton : N/A |
| N.W./Carton : N/A | G.W./Carton : N/A | QTY in 40HQ : N/A |
| QTY in 40GP : N/A | QTY in 20GP : N/A |
Product Introduction
170F汽油机水泵主要技术参数：
| 水泵Water pump | 出水管直径Outlet size(mm) | 50(2'') | 80(3'') | 100(4'') |
| 进水管直径Inlet size(mm) | 50(2'') | 80(3'') | 100(4'') | |
| 额定转速Rated speed(rpm) | 3600 | |||
| 最大流量Displacement(m/h) | 28 | 36 | 96 | |
| 扬程Lift(m) | 25 | 25 | 30 | |
| 吸程Suction(m) | 7 | |||
| 发动机Engine | 发动机型号Engine model | 170F | 170F | 190F |
| 排量Displacement(ml) | 196 | 410 | ||
| 最大功率Max. output(kw) | 6.5(4.8)/3600 | 13(9)/3600 | ||
| 燃油容积Oil capacity(L) | 3.6 | 6 | ||
| 缸径×行程Bore×stroke(mm) | 68×54 | 90×58 | ||
| 压缩比Compression ratio | 8.5:1 | 8.2:1 | ||
| 机油容积 Oil capacity(L) | 0.6 | 1.1 | ||
| 发动机形式 Engine type | OHV250,单缸，4冲程，强制冷风 OHV250,Single cylinder,4-stroke, forced air-cooled | |||
| 点火方式Ignition system | 无触点晶体管点火Transistor magneto | |||
| 启动方式Starting system | 手拉反冲式 Recoil | |||
| 尺寸Size | 包装尺寸Dimensions(mm) | 440×360×360 | 510×420×475 | |
| 净重/毛重N.W./G.W.(kg) | 24/26 | 26/28 |
38/40
|
|
