CNC vertical turning lathe vtl machine for metal

Add to My Favorites Download QR Code

Share product to :

CNC vertical turning lathe vtl machine for metal

QTY

FOB PRICE
CIF PRICE

Please contact the supplier to get the latest CIF price
QUANTITY

-

+

PCS
TOTAL COST
$1660

Specification

Model : C5126	Payment Terms : L/C, T/T	Delivery Port : Tianjin	delivery Time : 15days	Product Advantages : Well and High Quality Control, Competitive Prices, ODM Accepted, OEM Accepted
Material : Default

Packing Information

Pcs/Carton : N/A	Packing Size/Carton : N/A	Packing Vol/Carton : N/A
N.W./Carton : N/A	G.W./Carton : N/A	QTY in 40HQ : N/A
QTY in 40GP : N/A	QTY in 20GP : N/A

Product Introduction

Hengshui Shengyong Heavy-duty Machine Tool Manufacturing Co.,Ltd specializes in the researches, developments, manufactures and sells of metalworking machines: Vertical lathe machines,Vertical Turning Lathe, Vertical turret lathe ，Single column vertical lathe , Double column vertical lathe ,Heavy duty horizontal lathe machine, Gantry milling machine, boring milling machine , etc.

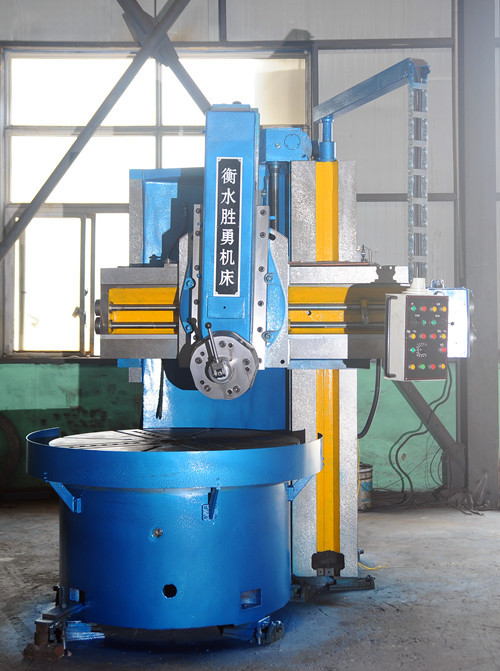

Single column Vertical Lathe machine model:

C5112/C5116/C5118/C5120/C5123/C5125/C5126

Maximum turning diameter: 1250/1600/1800/2000/2300/2500mm

Maximum height of workpiece: 1000/1000/1000/1200/1300/1350 mm

Maximum weight of workpiece 3.2 / 5 / 5 / 6 / 8 / 10 t

Double column Vertical Lathe machine model:

C5225/C5232/C5240/C5250/C5263

Maximum turning diameter:2500/3150/4000/5000/6300mm

Table diameter : 2500/3150/4000/5000/6300 mm

Our factory video:

https://youtu.be/4xCWym-Fp9k

Technical specification of Easy operating vertical turning lathe for metal C5126
1 Table diameter 2300mm
2 Maximum turning diameter 2600mm
3 Maximum Height of workpiece 1300mm
4 Maximum Weight of workpiece 10t
5 Speed range of table 2.5-80r/min
6 Working table Step of rotation speed 16
7 Range of feed rates 0.8-86 mm/min
8 Step 12
9 horizontal travel of vertical slide 1600 mm
Vertical travel of vertical slide 915 mm
10 Horizontal travel of side tool post 750 mm
Vertical travel of side tool post 900 mm
11 Crossrail travel 850 mm
12 Maximum size of tool bar section 35×45 mm
13 Power of main motor 37 kw
Rotating Speed 1470 r/min
14 Power of feed motor 1.3/1.7 kw
Rotating Speed 940/1440 r/min
15 Machine weight(Approx) 19.5 t
16 Overall dimensions(L ×W×H) 3450x3430x4100 mm
