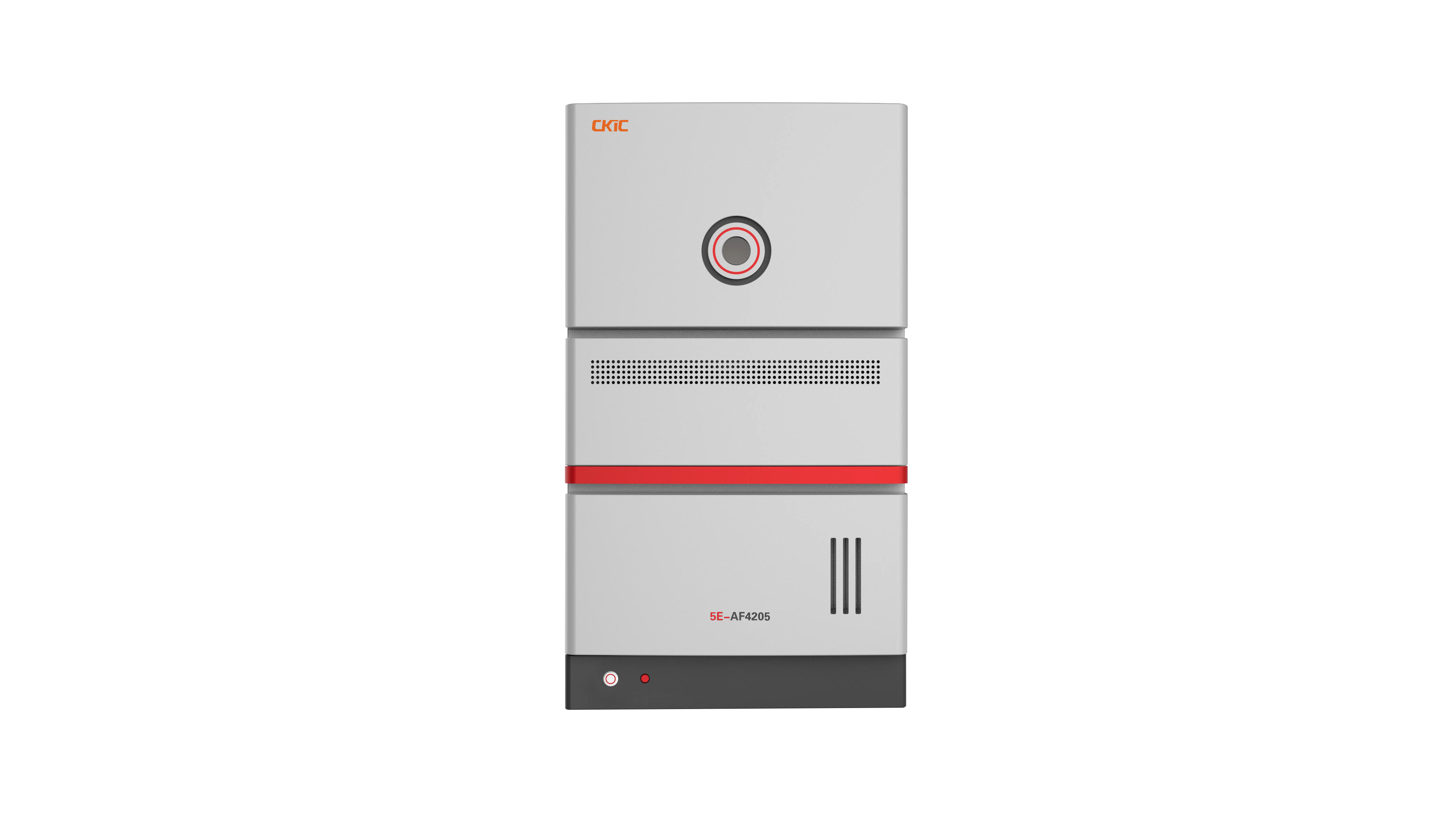

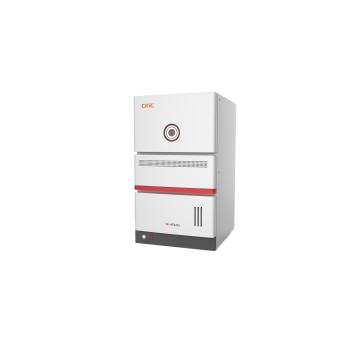

5E-AF4105 Ash Fusion Determinator

QTY

FOB PRICE
CIF PRICE

Please contact the supplier to get the latest CIF price
QUANTITY

-

+

PCS
TOTAL COST
$1660

Specification

Model : 5E-AF4105	Payment Terms : L/C, T/T	Delivery Port : Guangzhou Shanghai	delivery Time : 30-45 days	Product Advantages : Well and High Quality Control, Prompt Delivery, New Product, Competitive Prices, Earth-friendly Products, Small Order Acceptable
Material : Default

Packing Information

Pcs/Carton : N/A	Packing Size/Carton : N/A	Packing Vol/Carton : N/A
N.W./Carton : N/A	G.W./Carton : N/A	QTY in 40HQ : N/A
QTY in 40GP : N/A	QTY in 20GP : N/A

Product Introduction

5E-AF4105 Ash Fusion Determinator

1. Application

5E-AF4105/5E-AF4000 Ash Fusion Determinator is used to determine ash cone deformation temperature in coal ash, coke ash, biomass ash and mold powders automatically, which are critical to the boiler functioning properly and to avoid slagging and fouling.

2. Standard Configuration and Optional Configuration

A. Computer Printer Main analyzer A/C adapter Ash cone plate Activated carbon Graphite Detrine Magnesia Combustion cup Duab kit Ash cone module Gasket kit Tool kit

B. 7 samples ash cone plate(ISO std) Biomass ash cone mould

3. Features

High Automation

a. Determine four critical temperatures (DT, ST, HT,FT) automatically.

b. Video clips available for replying, which makes automatic identification and manually identification available.

c. Auto power-off after analysis, shorten operator's stand-by time and prolongs service life of high temperature parts.

High Stability

a. Optimized sample-loader with high reliability.

b. Durable heating element with Si-Mo material and ergonomic vertical furnace design ensures stable working temperature.

High Precision

a. 3.2 Mega-pixel professional camera provides high resolution image.

b. Excellent image processing method and critical temperature measurement to ensure precise result.

High Safety

a. Unique furnace design with hermetric structure, quantitative gas tightnesstest could be performed inside chamber.

b. Automatically check the gas leakage with auditory alarm and gas flow terminated if triggered.

4. Specification

Model	5E-AF4105	5E-AF4000
Conforms to Method	ASTM1857, ISO540, UNI CEN/TS 15370 and GB/T 219
Max. Sample Loading	5 samples for GB and ASTM standard, 7 samples for ISO standard
Max. Temp	Up to 1600 °C
Temp.Control Precision	± 1 °C
Camera Pixel	3.2 Mega-pixel
Image Frame	1 frame per 2 °C
Heating Rate	4 °C/min -10°C/min adjustable
Analysis Atmosphere	Axidizing atomphere/ Reducing atmosphere
Power Supply	Single Phase, AC220±10%,50/60Hz, ≤3.2kW	Single Phase, AC220±10%,50/60Hz,≤2.6kW
Net Weight	130kg	65kg
Dimension(LWH)	585mm530mm1180mm	480mm470mm740mm
Automatically monitor analysis process and provide high-definition image of experiment by industrial camera.
