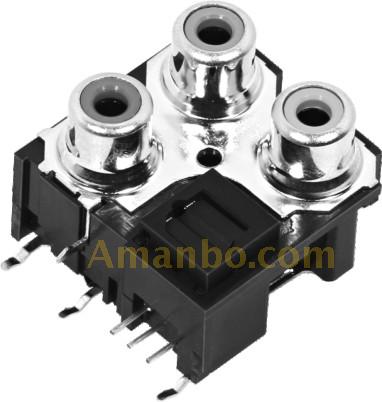

optical fiber jack products DQT(R)-022C
FOB Price :
QtyPrice
Supply Ability :
100000  PCS/ Month
CIF Price :
Please contact the supplier to get the latest CIF price.
Min.Order :
 PCS
Quantity :
-
+
Total Cost :
Add to My Favorites
Share product to: facebook twitter qq weixin sina
Download QR Code
Model :DQT(R)-022C
Payment Terms : T/T
Delivery Port : Shenzhen
delivery Time : 7-30days
Product Advantages : Well and High Quality Control,  Prompt Delivery,  Competitive Prices,  Earth-friendly Products,  Other
Packing Information
Pcs/Carton:  N/A Packing Size/Carton:  N/A
Packing Vol/Carton:  N/A N.W./Carton:  N/A
G.W./Carton:  N/A QTY in 40HQ:  N/A
QTY in 40GP:  N/A QTY in 20GP:  N/A
Product Introduction

Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: FOSEN
  • Model Number: optical fiber jack products DQT(R)-022C
  • Type: RCA, optical fiber jack products DQT(R)-022C
  • Application: Audio & Video
  • Gender: Female
  • Color: Black colour optional
  • Certificate: ROHS SGS ISO9001/14001
  • MOQ: 1000PCS
  • Sample: Free

Packaging & Delivery

Packaging Details: Inner packed with plastic bags, outer packed with cartons.
Delivery Detail: 7 to 10 days after your payment

Specifications

1.optical fiber jack products DQT(R)-022C
2.Factory price
3.Wth 10 years experience
4.Certificate: ROHS SGS ISO90001/14001

optical fiber jack products DQT(R)-022C

1. Product Specifications

Features

1. Uni-directional data transmission using plastic fiber,conform to EIAJ standard CP-1201(For Digital audio interfaces including fiber optic inter-connections).



2. Signal transmission speed:MAX.16Mbps(NRZ signal)25mbps



3. Operating voltage:2.7 to 5.5V



Optical Fiber Transmitting Module: 2.7 to 5.5V



Optional Fiber Receiving Module: 2.4 to 5.5V



4. TTL and high speed C-MOS LOGIC IC compatible



5.ESD capacity :IC≥5KV

Optical Fiber Transmitting Module Electro-Optical Characteristics

Parameter

Symbol

Conditions

MIN

 TYP

MAX

Unit

Peak emission wavelength

λp



660



nm

Optical power output coupling with fiber

Pc

Refer to Fig.1

-21

-18

-15

dBm

Dissipation current

Icc

Refer to Fig .2

3

7

mA

High level inprt voltage

ViH

Refer to Fig .2

2.0

Vcc

V

Low level input voltage

ViL

Refer to Fig .2

0.8

V

Low High delay time

tpLH

Refer to Fig .3

100

ns

High Low delay time

tpLH

Refer to Fig .3

100

ns

Pulse width distortion

tw

Refer to Fig .3

-15

+15

ns

Jitter

tj

Refer to Fig .3

1

+15

ns



 Optical Fiber  Receiving Module Electro-Optical Characteristics

Parameter

Symbol

Conditions

MIN

 TYP

MAX

Unit

Peak emission wavelength

λp



660



nm

Receiver input optical power level

Pc

Refer to Fig.3

-24

-13.5

dBm

Dissipation current

Icc

Refer to Fig .2

3

7

mA

High level inprt voltage

VoH

Refer to Fig .1

2.1

V

Low level input voltage

VoL

Refer to Fig .1

0.2

0.4

V

Rise time

tr

Refer to Fig .1

8

20

ns

Fall time

tr

Refer to Fig .1

  8

20

ns

Low High delay time

tpLH

Refer to Fig .1

100

ns

High Low delay time

tpLH

Refer to Fig .1

100

ns

Pulse width distortion

tw

Refer to Fig .1

-15

+15

ns

Jitter

tj

Refer to Fig .1

15

ns

2. Applications

They can used operate computer ancillary equipment, audio equipment , TV, all kinds of small autoimmunization equipment and instruments etc.



3. How to Order

Quotation → Invoice → Payment → Samples → Production → Package → Delivery → Customs → Received

4. Packing

Inner packed with plastic bags, outer packed with cartons.



5.About Our Company

Dongguan Fosen Electronics Technology Co.,Ltd.

Our factory was established in 2002, which is a professional manufacturer specializes in manufacturing all kinds of tact switches, fiber terminals and computer connectors. Our products have passed ISO9001/14001 quality management system certification. They are widely used in home appliances digital cameras, toys, car audio, computer and IT peripherals products industry. Our products are mostly sold to Japan, Southeast Asia, Europe, America, and other countries and some domestic famous enterprises. Such as JVC and SONY of Japan, LG of South Korea, BBK, GREE Electric Appliance and so on. If you are interested in any of our products, please feel free to visit our website or contact us directly for more information. We also welcome any customer design (OEM&ODM) or sample.







6.Delivery

Prompt Delivery & Lowest shipping cost : We can get low discount from DHL, Fedex, UPS, TNT, EMS, etc.

Thanks for reading our website, Have a nice day!

"Fosen, The best electronic products supplier
