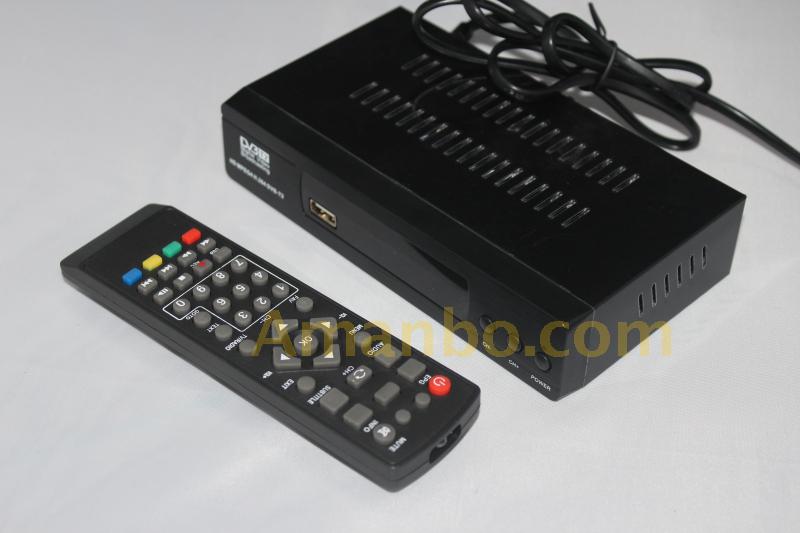

2015 Cost-effictive dvb t2 hd digital modulator dvb-t2&dvb-s2 set top box, Montage VT6000 dvb s2 satellite receiver
FOB Price :
QtyPrice
Supply Ability :
30000  PCS/ Month
CIF Price :
Please contact the supplier to get the latest CIF price.
Min.Order :
 PCS
Quantity :
-
+
Total Cost :
Add to My Favorites
Share product to: facebook twitter qq weixin sina
Download QR Code
Model :T2+S2
Payment Terms : T/T,  Western Union
Delivery Port : Shenzhen
Product Advantages : Well and High Quality Control,  Prompt Delivery,  New Product,  Competitive Prices,  Fit for Gifts and Premiums,  Earth-friendly Products,  In a Variety of Design,  Small Order Acceptable,  ODM Accepted,  OEM Accepted
Packing Information
Pcs/Carton:  40 Packing Size/Carton:  52.5 * 40.5 * 37
Packing Vol/Carton:  N/A N.W./Carton:  21.0 kg
G.W./Carton:  22.0 kg QTY in 40HQ:  N/A
QTY in 40GP:  N/A QTY in 20GP:  N/A
Product Introduction



Model DVB-T2+S2 COMBO
Hardware
CPU Montage VT6000
Memory 32X16Mbit  DDR2 f@400MHz
Flash 4M bytes
Demodulator Type M88DM6000
S2 TUNER M88TS2022
T2 TUNER MaxLinear MXL 608
Front Panel USB 2.0 Embedded One Host,
4-digit LED display on front panel
red LED Standby,green  LED Lock
Panel KEY, POWER, CH+ ,CH-
Rear Panel S2 LNB  IN  input connector   IEC60169-2
T2 ANT    input  connector   IEC-162-2(IEC  Female)
HDMI V1.3
RCA  CVBS AL AR Connector  x1
Ypbpr RCAx1
Coaxial x1
Power  AC100~240V  50Hz/60Hz
DVB-T2  Demodulation
DVB-T2  Demodulation Terrisal Receiver StandardDVB-T2/T(EN_302755 V1.3.1/EN 300744)
Input RF Frequency 48~866MHZ
Bandwidth6MHz,7MHz,8MHz
Constellation  QPSK 16-QAM 64-QAM and 256-QAM
FEC  1/2, 3/5,2/3, 3/4,4/5,5/6
Guard Interval1/128  1/32  1/16  19/256  1/8  19/128  1/4
FFT Mode 2K/ 8K/32K
Support  Single and multiple PLPS
Input level -83~ -5dBm
DVB-S2  Channel Decoder
DVB-S2  Channel Decoder Frequency Range 950MHz-2150MHz
Sensitivity  Level  - 10~ - 81dBm
Mode IFFT 2k,8k
FEC Mode  1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
Guard intervals  1/4,1/8,1/16,1/32
Constellation  QPSK、8PSK、16APSK
Neighboring channels
immunity and  Protection
According to ETSI TR 101 190 V1.2.1
Active Ant Power 13/18V DC @ 500mA MAX,Overload Protection
Sortware Features
•Fully DVB Compliant and H.264/MPEG-2/MPEG-4/AVS
•Support Full / Blind Search on Single / Multiple Satellites
•Support Auto / Manual Search on Terrestrial Network
•Support DiSEqC 1.0 / 1.1 / 1.2 / USALS / Unicable
•Powerful Service Control by Favorites, Lock, Skip, Move, Rename & Delete
•Support 7-day EPG, Event Recording by EPG
•Support Multi-Language (OSD & Menu)
•Maximum 4000 Service Programmable
•TV System: Auto / PAL / NTSC
•Aspect Mode: Auto / 4:3LetterBox / 4:3PanScan / 16:9
•Video Output Resolution: 480i/576i/480p/576p/720p/1080i/1080P
•Support Audio Description (Thailand Standard)
•Support Teletext, Subtitle
•Support Find / Zoom
•Support Parental Lock
•Support Software Upgrade by OTA/USB
•USB 2.0 Host Support (Time Shift, PVR, MP3 Player & Picture Viewer & Media Player)
 Decoder
Video Decoder • MPEG2 MP@ML for SD
• MPEG2 MP@HL for HD
• H.264/AVC MP@L3.0 for SD
• H.264/AVC HP@L4.1 for HD
• AVS Jizhun profile @L6.0
• MPEG4 Simple profile @ all levels
• MPEG4 Advanced Simple Profile@ L5 without GMC, data partitioning and Reversible VLC.
• MPEG4 Xvid1.3.2 without GMC
• MPEG4 DivX  without GMC
• MPEG4 H263 baseline profile
Audio Decoder • MPEG-1 LayerI & Layer II Musicam
• MPEG-2 AAC-LC
• MPEG4 HE-AAC
• Dolby Digital (AC3) (optional, depend on CHIPSET)
• Dolby Digital AC-3/E-AC3 (optional, depend on CHIPSET)
• AAC 5.1
Powerful Multimedia Features

Media Codec mpeg2, m2ts, ts, avi, mkv, asf, 3g2, 3gp, mp4, mov, flv, f4v, vob, dvix
Audio Codec wav, mp3
Photo Codec jpeg, gif, bmp, png
Accessories
Accessories Gift Box
AV Cable Optional
HDMI Cable Optional
IR Remote Control

User Manual
